Desktop instruments
Microplate Thermostat Oscillator

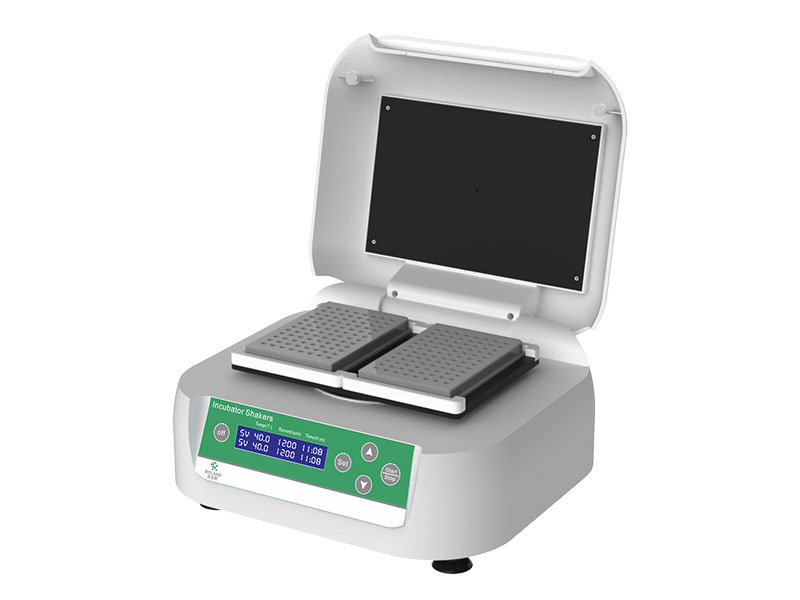

Bioland™ CTM-96-2 Microplate Thermostat Oscillator
CTM-96-2 Microplate Thermostatic Oscillator Microplate Thermostatic Oscillator is a microprocessor technology combined with PID control to form a microplate thermostatic oscillator that is small in size, light in weight, low in noise, and easy to operate. It is mainly used for mixing or incubation of cells in enzyme plates (96/384 well plates), cell culture plates (24-well plates, 48-well plates, 96-well plates, etc.), and other solutions at the appropriate temperature, and is commonly used in immunohistochemistry and molecular diagnostic experiments for the thermostatic oscillation of microplates.
Up and down the heating of the plate so that each well of the plate is heated evenly
Microprocessor controlled temperature, speed, and time, with good linearity of temperature control, accurate oscillation speed, and low fluctuation
Simultaneous display of set and actual temperature, time, and oscillation speed parameters
2 standard enzyme plates and microplates can be placed, and an audible alarm sounds at the end of the program to alert the end of the experiment

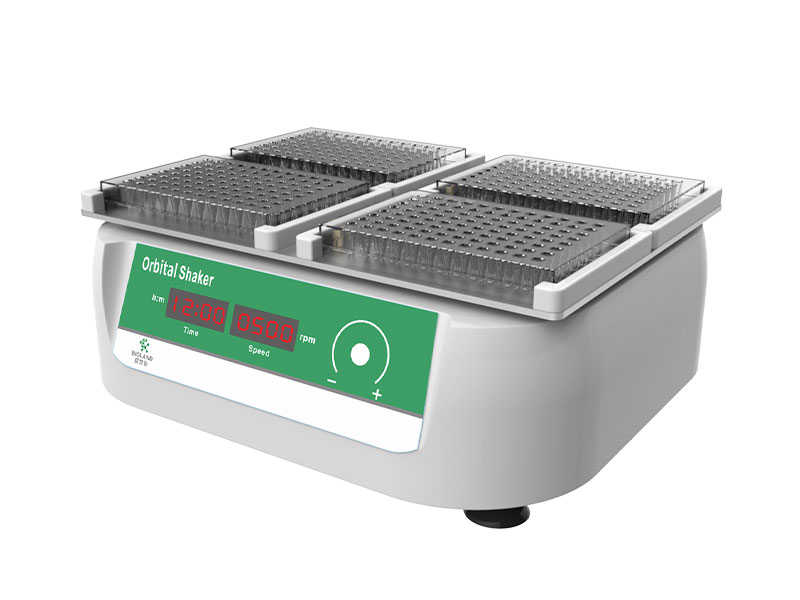

Bioland™ MO-96-4 Microplate Oscillator
The MO-96-4 Microplate Shaker is a brushless DC motor-driven shaker for mixing and shaking solutions in enzyme plates (96/384 well plates), cell culture plates (24 well plates, 48 well plates, 96 well plates, etc.), and 1.5/2.0ml centrifuge tubes.
LED digital display, simple operation panel, precise display of time and oscillation speed parameters
Microprocessor-controlled speed and time, accurate oscillation speed, small fluctuations, safe and stable without noise
Simultaneous display of time and oscillation speed parameters
4 standard enzyme plates and microplates can be placed, and an audible alarm is issued at the end of the program
Brushless DC motor drive, long life, no warranty, soft or powerful oscillation available
CTM-96-2CTM-96-4MO-96-4
-
Product information
Bioland™ CTM-96-2 Microplate Thermostat Oscillator
Order Number Oscillation speed Oscillation amplitude (horizontal rotation) Temperature control range Temperature control accuracy Display accuracy Heating up time (20°C to 70°C) Timing range Sample handling capacity Power supply External dimensions (mm) Weight CTM-96-2 100-1200rpm 2mm Room temperature +5°C - 70°C ≤±0.3℃ 0.1℃ ≤20min 1min-99h59min 2 standard microtiter plates AC100-230V，50-60HZ,120W 270×300×158 6.3kg CTM-96-4 100-1500rpm 2mm Room temperature +5°C - 70°C ≤±0.3℃ 0.1℃ ≤20min 1min-99h59min 4 standard microtiter plates AC100-230V，50-60HZ,120W 325×360×180 8.5kg
Bioland™ MO-96-4 Microplate OscillatorOrder Number Oscillation speed setting accuracy Oscillation speed Time Setting Amplitude of oscillation Power supply External dimensions (mm) Weight MO-96-4 10rpm 200-1500rpm Standard microplates200-1000rpm Deep well plate or tube rack 1min-99h59min 3mm AC220V or AC120V 300x270x125 5.5kg -
